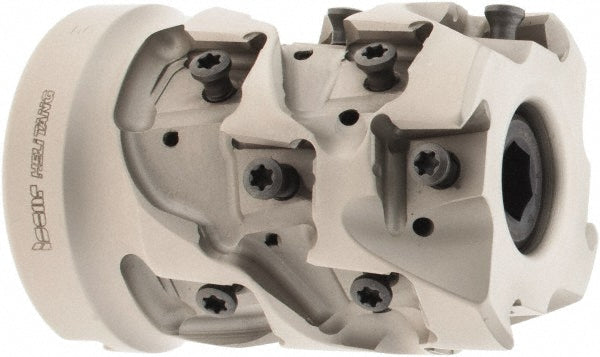

Indexable Milling Cutters - Iscar 3105093

Iscar

Indexable Milling Cutters - Iscar 3105093

MFR# 3105093Series Helitang

$947.11List $978.00 Save 3%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes4

Description

The Iscar 3105093 indexable milling cutters. Series Helitang.

Specifications

Arbor hole diameter1.0000
Compatible insert size codeT490 LN 1306
Complete insert compatibilityT490 LNAR 1306PN-R; T490 LNAR 1306PN-R-P; T490 LNHT 1306PN-R PL; T490 LNHT 1306PNTL; T490 LNHT 1306PNTR; T490 LNMT 1306PNTR; T490 LNMT 1306PNTR-CS
Coolant throughYes
Cutter styleT490 SM-13
Cutting directionRight Hand
Hub diameter1.9200
Insert holding methodClamp; Screw
Lead angle0/90
Maximum cutting diameter in2
Maximum depth of cut1.8700
Number of cutter inserts16
Number of flutes4
Overall height2.7000
StandardsISO
