Iscar

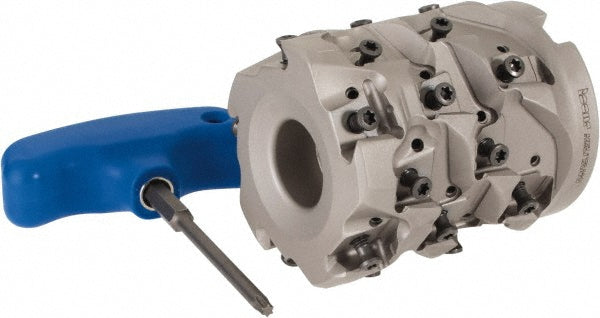

Indexable Milling Cutters - Iscar 3105095
MFR# 3105095Cat# T490 SM-D2.5-23-5-1.0-13Series Helitang
$1,695.33List $1,800.00
Save 5%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes5
Description
The Iscar 3105095 indexable milling cutters. Series Helitang.
Specifications
Arbor hole diameter1.0000
Compatible insert size codeT490 LN 1306
Complete insert compatibilityT490 LNAR 1306; T490 LNMT/LNHT 1306
Coolant throughYes
Cutter styleT490 SM-13
Cutting edge length2.3200
Hub diameter2.2000
Insert holding methodClamp; Screw
Lead angle0/90
Manufacturers catalog numberT490 SM-D2.5-23-5-1.0-13
Maximum cutting diameter in2-1/2
Maximum depth of cut2.3200
Maximum insert radius0.2500
Minimum insert radius0.0310
Number of cutter inserts25
Number of flutes5
Overall height2.9500
StandardsISO
