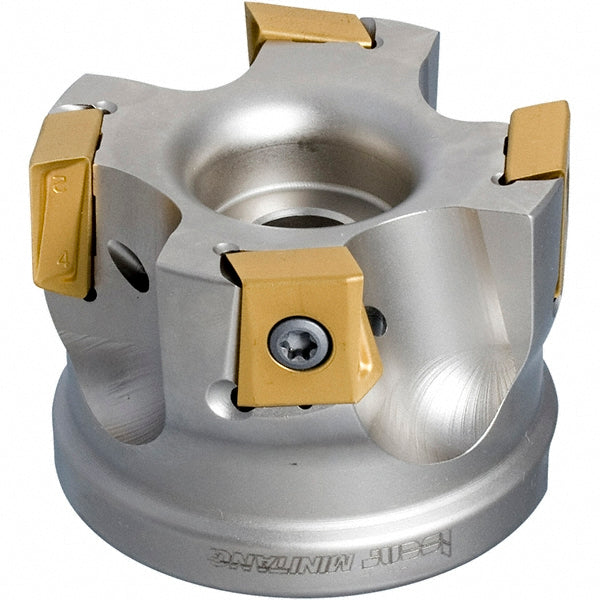

Indexable Milling Cutters - Iscar 3105213

MFR# 3105213Series Helitang

$822.18List $849.00 Save 3%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes6

Description

The Iscar 3105213 indexable milling cutters. Series Helitang.

Specifications

Arbor hole diameter1.0000
Compatible insert size codeT490 LN.T1607
Complete insert compatibilityT490 LNHT 160708PNR; T490 LNHT 160712PNR; T490 LNHT 160716PNR; T490 LNHT 160724PNR; T490 LNHT 160732PNR; T490 LNMT 1607PN-R; T490 LNMT 1607PN-R-CS
Coolant hole diameter0.7800
Coolant throughYes
Cutter styleT490 FLN-08
Cutting directionRight Hand
Hub diameter in1
Insert holding methodClamp; Screw
Keyway depth0.2190
Keyway width0.3750
Lead angle0/90
Maximum cutting diameter in2-1/2
Maximum depth of cut0.6300
Number of cutter inserts6
Number of flutes6
Overall height1.7500
Pitch typeFine
StandardsISO
