Iscar

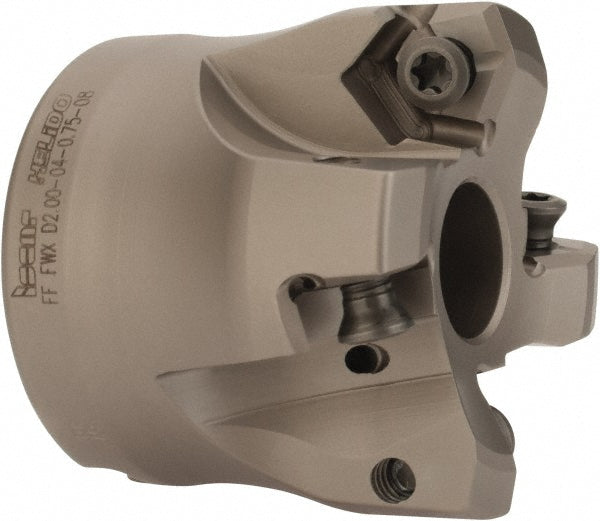

Indexable Milling Cutters - Iscar 3105246
MFR# 3105246Cat# FF FWX D2.00-04-0.75-08Series FF FWX
$668.20List $690.00
Save 3%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes4
Description
The Iscar 3105246 indexable milling cutters. Series FF FWX.
Specifications
Arbor hole diameter0.7500
Compatible insert size codeH600 WXCU 08
Coolant throughYes
Cutter styleFF FWX-08
Cutting diameter2.0000
Cutting directionRight Hand
Insert compatibilityH600 WXCU 08
Insert holding methodScrew
Manufacturers catalog numberFF FWX D2.00-04-0.75-08
Maximum body diameter2.0000
Maximum cutting diameter2.0000
Maximum depth of cut0.0800
Maximum ramping angle4.70degree
Minimum cutting diameter1.3700
Number of cutter inserts4
Number of flutes4
Overall height1.7500
StandardsISO
