Iscar

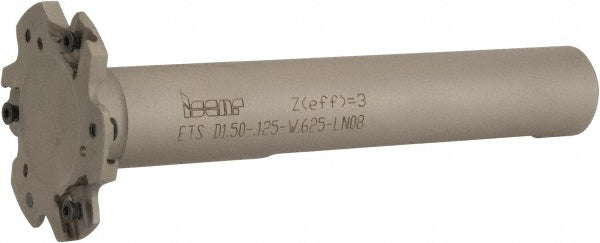

Indexable Milling Cutters - Iscar 3105357
MFR# 3105357Cat# ETS D1.50-.125-W.625-LN08Series Mini-TangSlot (ETS-LN08)
$717.60List $741.00
Save 3%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Iscar 3105357 indexable milling cutters. Series Mini-TangSlot (ETS-LN08).
Specifications
Compatible insert styleLNET
Complete insert compatibilityLNET 081804-TN-N
Connection typeShank
Cutter diameter1.5000
Cutting directionRight Hand
Cutting radius frac in1/64
Cutting width in1/8
Hole diameter in5/8
Insert holding methodScrew
Insert inscribed circle (mm)6.85
Manufacturers catalog numberETS D1.50-.125-W.625-LN08
Maximum cutting width0.1250
Maximum depth of cut0.4370
Minimum cutting width0.1250
Number of cutter inserts6
Number of teeth3
Overall height4.0000
Shank diameter in5/8
Shank length3.8750
Toolholder styleETS-LN08
Tool applicationMilling
Weldon flatYes
