Iscar

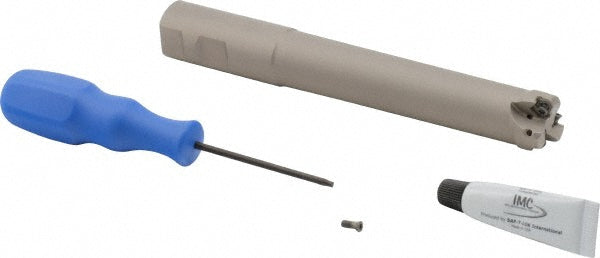

Indexable End Mills - Iscar 3105546
MFR# 3105546Series High Feed 6
$513.26List $530.00
Save 3%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Description
The Iscar 3105546 indexable end mills. Series High Feed 6.
Specifications
Compatible insert styleH600WXCU05T312T
Coolant throughYes
Cutting diameter1.0000
Head length5.1200
Insert holding methodScrew
Maximum cutting diameter in1
Maximum depth of cut0.0430
Maximum ramping angle5.00
Minimum cutting diameter0.6100
Number of cutter inserts3
Number of flutes3
Overall length7.4500
Shank diameter in1
Shank typeWeldon Flat
StandardsISO 13399
Toolholder styleFF EWX-05
Tool applicationMilling
Weldon flatYes
Can't find your exact tool?Send us a part number — we'll cross-reference it.
Dull tools?Regrinding extends tool life and saves cost.
Alternate & equivalent tools
Matched on diameter, flute count, and material. Need a specific brand or coating? Cross-reference this tool.
Spec-matched alternates load as the catalog fills in. Meanwhile, browse the End Mills collection and filter by diameter, flutes & length of cut.
