Iscar
Indexable End Mills - Iscar 3105547
MFR# 3105547Cat# FF EWXD1.25-4-2.5W1.00-05Series High Feed 6
$508.42List $525.00
Save 3%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes4
Description

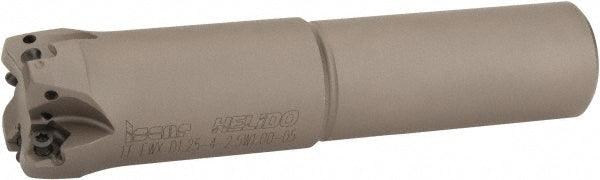

The Iscar 3105547 indexable end mills. Series High Feed 6.
Specifications
Compatible insert styleH600WXCU05T312T
Coolant throughYes
Cutting diameter1.2500
Head length2.6200
Insert holding methodScrew
Manufacturers catalog numberFF EWXD1.25-4-2.5W1.00-05
Maximum cutting diameter in1-1/4
Maximum depth of cut0.0400
Maximum ramping angle4.00
Minimum cutting diameter0.8600
Number of cutter inserts4
Number of flutes4
Overall length4.9500
Shank diameter in1
Shank typeWeldon Flat
StandardsISO 13399
Toolholder styleFF EWX-05
Tool applicationMilling
Weldon flatYes
