Iscar

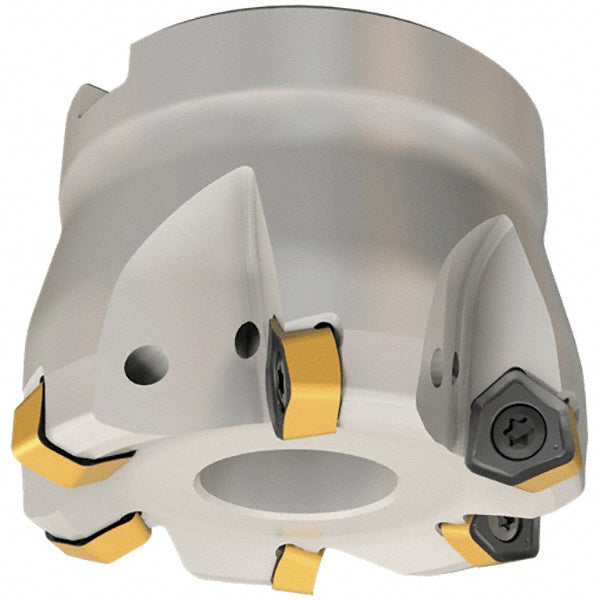

Indexable Milling Cutters - Iscar 3105552
MFR# 3105552Series Helido
$646.90List $668.00
Save 3%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes5
Description
The Iscar 3105552 indexable milling cutters. Series Helido.
Specifications
Arbor hole diameter0.5000
Compatible insert size codeH600 WXCU 05
Complete insert compatibilityH600 WXCU 05
Coolant throughYes
Cutter styleFF FWX-05
Cutting diameter1.5000
Insert compatibilityH600 WXCU 05
Insert holding methodScrew
Maximum body diameter1.5000
Maximum cutting diameter1.5000
Maximum depth of cut0.0400
Maximum ramping angle3.00degree
Minimum cutting diameter1.1100
Number of cutter inserts5
Number of flutes5
Overall height1.2500
StandardsISO
