Iscar

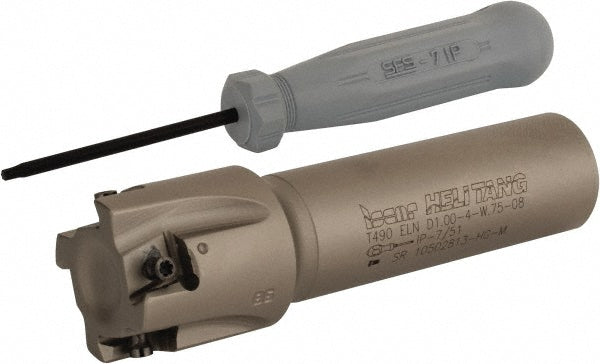

Indexable End Mills - Iscar 3105589
MFR# 3105589Cat# T490 ELN D1.00-4-W.75-08Series Helitang
$461.93List $477.00
Save 3%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes4
Description
The Iscar 3105589 indexable end mills. Series Helitang.
Specifications
Coolant throughNo
Cutter styleT490 ELN-08
End mill typeHelical
Flute typeHelical
Insert compatibilityT490 LN.T 0804
Insert holding methodScrew
Iso 140012004; ISO 50001
Iso 90012008
Lead angle90
Manufacturers catalog numberT490 ELN D1.00-4-W.75-08
Maximum depth of cut0.3150
Maximum ramping angle0.5
Number of cutter inserts4
Number of flutes4
Oshas180012007
Shank diameter in3/4
Shank length3.3800
Shank typeWeldon Flat
StandardsAS 9100
Tool applicationMilling
Tool materialSolid Carbide
Usable length1.0000
