Iscar

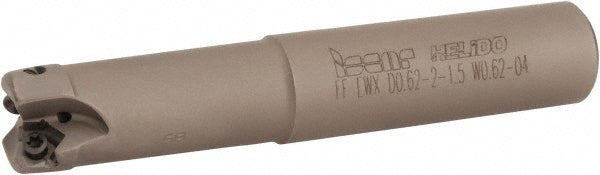

Indexable End Mills - Iscar 3105627
MFR# 3105627Cat# FF EWXD0.62-2-1.5W0.62-04Series High Feed 6
$378.65List $391.00
Save 3%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
Description
The Iscar 3105627 indexable end mills. Series High Feed 6.
Specifications
Compatible insert styleH600WXCU040310T
Coolant throughYes
Cutting diameter0.6250
Head length1.6000
Insert holding methodScrew
Manufacturers catalog numberFF EWXD0.62-2-1.5W0.62-04
Maximum cutting diameter in5/8
Maximum depth of cut0.0600
Maximum ramping angle5.00
Minimum cutting diameter0.3330
Number of cutter inserts2
Number of flutes2
Overall length3.5500
Shank diameter in5/8
Shank typeWeldon Flat
StandardsISO 13399
Toolholder styleFF EWX-04
Tool applicationMilling
Weldon flatYes
