Iscar

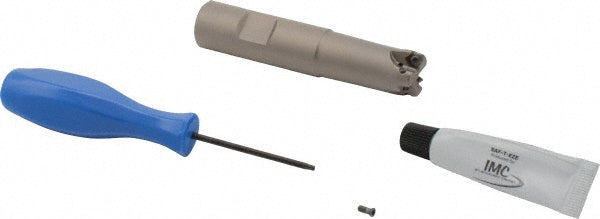

Indexable End Mills - Iscar 3105630
MFR# 3105630Cat# FF EWXD0.75-3-1.5W0.75-04Series High Feed 6
$429.70List $436.00
Save 1%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Description
The Iscar 3105630 indexable end mills. Series High Feed 6.
Specifications
Compatible insert styleH600WXCU040310T
Coolant throughYes
Cutting diameter0.7500
Head length1.6000
Insert holding methodScrew
Manufacturers catalog numberFF EWXD0.75-3-1.5W0.75-04
Maximum cutting diameter in3/4
Maximum depth of cut0.0600
Maximum ramping angle5.00
Minimum cutting diameter0.4580
Number of cutter inserts3
Number of flutes3
Overall length3.6500
Shank diameter in3/4
Shank typeWeldon Flat
StandardsISO 13399
Toolholder styleFF EWX-04
Tool applicationMilling
Weldon flatYes
