Iscar

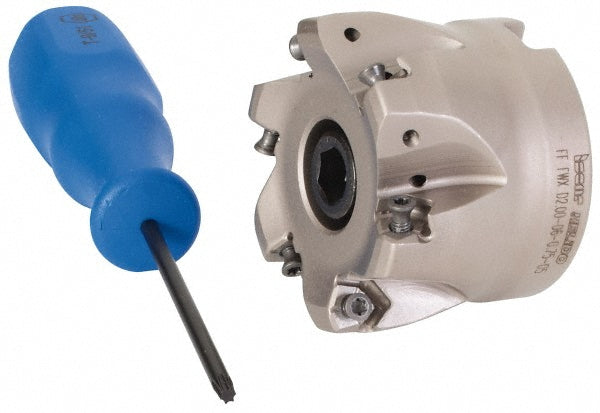

Indexable Milling Cutters - Iscar 3105715
MFR# 3105715Cat# FF FWX D2.00-06-0.75-05Series Helido
$744.70List $769.00
Save 3%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes6
Description
The Iscar 3105715 indexable milling cutters. Series Helido.
Specifications
Arbor hole diameter0.7500
Compatible insert size codeH600 WXCU 05
Complete insert compatibilityH600 WXCU 05
Coolant throughYes
Cutter styleFF FWX-05
Cutting diameter2.0000
Insert compatibilityH600 WXCU 05
Insert holding methodScrew
Manufacturers catalog numberFF FWX D2.00-06-0.75-05
Maximum body diameter2.0000
Maximum cutting diameter2.0000
Maximum depth of cut0.0400
Maximum ramping angle2.00degree
Minimum cutting diameter1.6100
Number of cutter inserts6
Number of flutes6
Overall height1.5000
StandardsISO
