Iscar

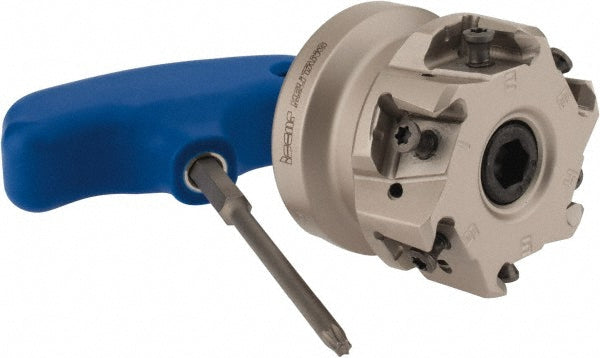

Indexable Milling Cutters - Iscar 3105726
MFR# 3105726Cat# T490 FLN D2.00-6-.75-R-13Series Helitang
$736.96List $761.00
Save 3%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes6
Description
The Iscar 3105726 indexable milling cutters. Series Helitang.
Specifications
Arbor hole diameter0.7500
Compatible insert size codeT490 LNT 1306
Complete insert compatibilityT490 LNMT; LNHT 1306
Coolant throughYes
Cutter styleT490 FLN-13
Cutting directionRight Hand
Cutting edge length0.4920
Hub diameter1.8500
Insert holding methodClamp; Screw
Lead angle0/90
Manufacturers catalog numberT490 FLN D2.00-6-.75-R-13
Maximum cutting diameter in2
Maximum depth of cut0.4920
Maximum insert radius0.2500
Maximum ramping angle1.50
Minimum insert radius0.0310
Number of cutter inserts6
Number of flutes6
Overall height1.5700
StandardsISO
