Iscar

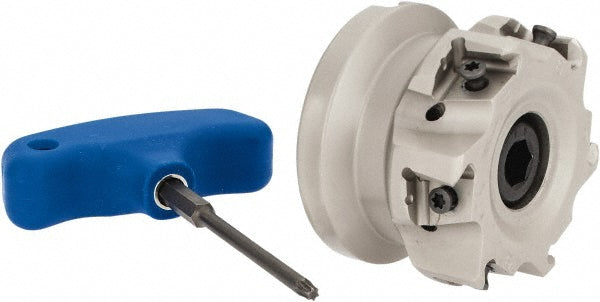

Indexable Milling Cutters - Iscar 3105727
MFR# 3105727Cat# T490 FLN D2.50-8-1.0-R-13Series Helitang
$898.68List $953.00
Save 5%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes8
Description
The Iscar 3105727 indexable milling cutters. Series Helitang.
Specifications
Arbor hole diameter1.0000
Compatible insert size codeT490 LNT 1306
Complete insert compatibilityT490 LNMT; LNHT 1306
Coolant throughYes
Cutter styleT490 FLN-13
Cutting directionRight Hand
Cutting edge length0.4920
Hub diameter2.3600
Insert holding methodClamp; Screw
Lead angle0/90
Manufacturers catalog numberT490 FLN D2.50-8-1.0-R-13
Maximum cutting diameter in2-1/2
Maximum depth of cut0.4920
Maximum insert radius0.2500
Maximum ramping angle1.00
Minimum insert radius0.0310
Number of cutter inserts8
Number of flutes8
Overall height1.7500
StandardsISO
