Iscar
Indexable End Mills - Iscar 3105999
MFR# 3105999Series H400 ER-12
$414.48List $428.00
Save 3%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Description

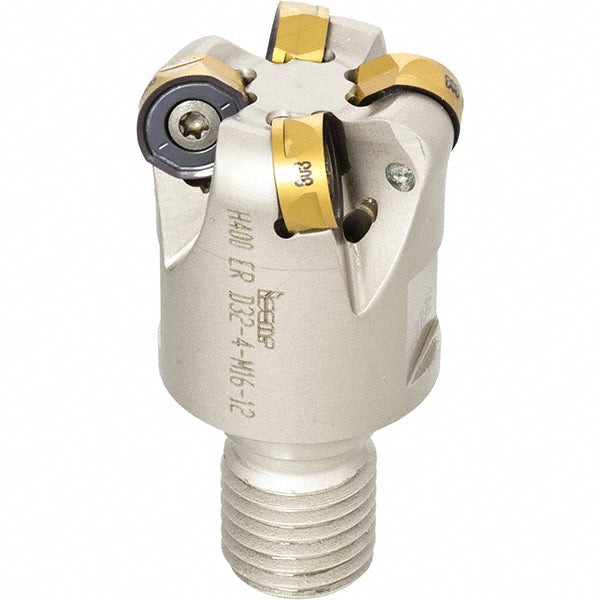

The Iscar 3105999 indexable end mills. Series H400 ER-12.
Specifications
Compatible insert styleH400 RNHU 1205
Coolant throughYes
Cutting diameter0.9843
Functional length1.1020
Insert holding methodScrew
Maximum cutting diameter0.9840
Maximum depth of cut0.2953
Maximum ramping angle5.8
Minimum cutting diameter (mm)15.00
Modular connection sizeM12
Number of cutter inserts3
Number of flutes3
Overall length1.1024
Shank diameter1.1420
Shank length0.8670
Shank typeModular Connection
StandardsISO 13399
Toolholder materialSolid Carbide
Toolholder styleER-12; ER-M; H400; H400 ER-10; H400 ER-12; H400 ER-M
Tool applicationMilling
