Iscar

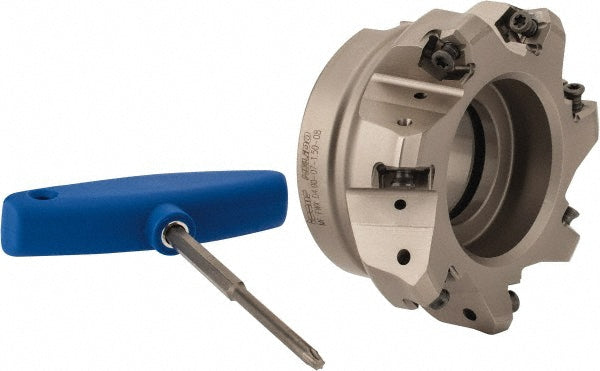

Indexable Milling Cutters - Iscar 3106031
MFR# 3106031Cat# MF FWX D4.00-07-1.50-08Series Helido
$1,281.21List $1,300.00
Save 1%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes7
Description
The Iscar 3106031 indexable milling cutters. Series Helido.
Specifications
Arbor hole diameter in1-1/2
Compatible insert size codeH600 WXCU 08
Complete insert compatibilityH600 WXCU 08
Coolant throughYes
Cutter styleMF FWX-08
Cutting directionRight Hand
Hub diameter3.1100
Insert holding methodScrew
Manufacturers catalog numberMF FWX D4.00-07-1.50-08
Maximum body diameter4.0000
Maximum cutting diameter in4
Maximum depth of cut0.1380
Maximum insert radius0.0470
Minimum cutting diameter3.3980
Number of cutter inserts7
Number of flutes7
Overall height2.0000
StandardsISO
