Indexable Milling Cutters - Iscar 3106154
MFR# 3106154Cat# ETS D2.50-.281-W.750-LN08Series Mini-TangSlot (ETS-LN08)
$1,104.66List $1,170.00
Save 5%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description

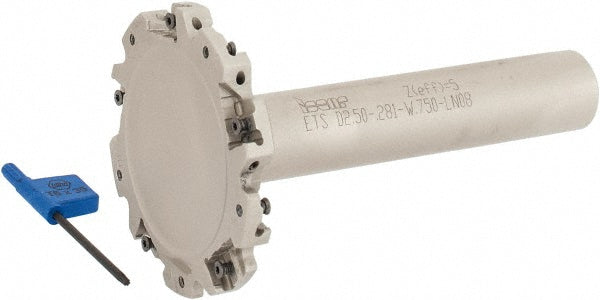

The Iscar 3106154 indexable milling cutters. Series Mini-TangSlot (ETS-LN08).
Specifications
Compatible insert styleLNET
Complete insert compatibilityLNET 081804-TN-N; LNET 084004-TN-N; LNET 084204-TN-N
Connection typeShank
Cutter diameter2.5000
Cutting directionRight Hand
Cutting radius frac in1/64
Hole diameter in3/4
Insert holding methodScrew
Insert inscribed circle (mm)6.85
Manufacturers catalog numberETS D2.50-.281-W.750-LN08
Maximum cutting width0.3210
Maximum depth of cut0.8750
Minimum cutting width0.2810
Number of cutter inserts10
Number of teeth5
Overall height4.2500
Shank diameter in3/4
Shank length3.9290
Toolholder styleETS-LN08
Tool applicationMilling
Weldon flatYes
