Iscar

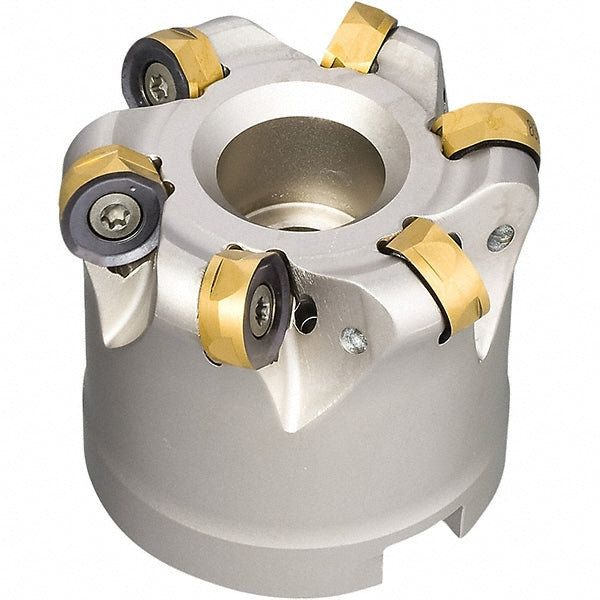

2" Indexable Milling Cutters - Iscar 3106164
MFR# 3106164Series Helido
$664.33List $686.00
Save 3%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Iscar 3106164 indexable milling cutters. Series Helido.
Specifications
Arbor hole diameter0.7500
Compatible insert size codeH400 RNHU
Complete insert compatibilityH400 RNHU
Coolant throughYes
Cutter styleH400 FR-16
Cutting diameter in2
Hub diameter1.9210
Insert holding methodScrew
Maximum cutting diameter2.0000
Maximum depth of cut0.4700
Maximum ramping angle3.50degree
Minimum cutting diameter1.3700
Number of cutter inserts5
Overall height1.5000
StandardsISO
