Iscar

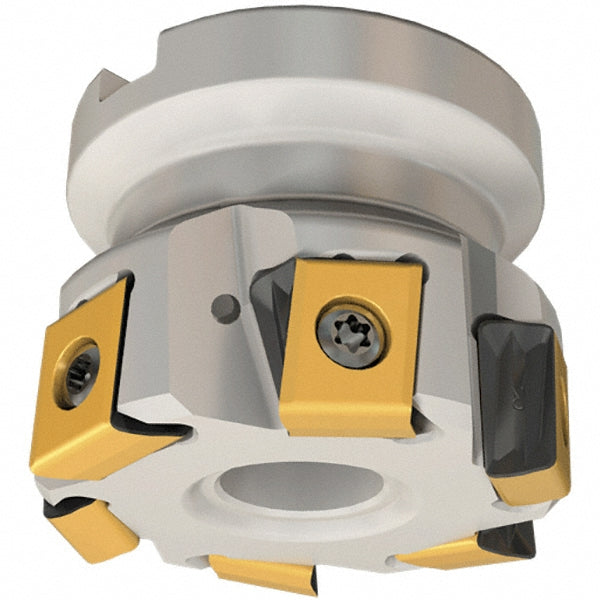

Indexable Milling Cutters - Iscar 3106194
MFR# 3106194Series Helitang
$1,462.30List $1,510.00
Save 3%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes9
Description
The Iscar 3106194 indexable milling cutters. Series Helitang.
Specifications
Arbor hole diameter1.5000
Compatible insert size codeT490 LNT 1306
Complete insert compatibilityT490 LNMT; LNHT 1306
Coolant throughYes
Cutter styleT490 FLN-13
Cutting directionRight Hand
Cutting edge length0.4920
Hub diameter3.7400
Insert holding methodClamp; Screw
Lead angle0/90
Maximum cutting diameter in5
Maximum depth of cut0.4920
Maximum insert radius0.2500
Maximum ramping angle0.50
Minimum insert radius0.0310
Number of cutter inserts9
Number of flutes9
Overall height2.0000
StandardsISO
