Iscar

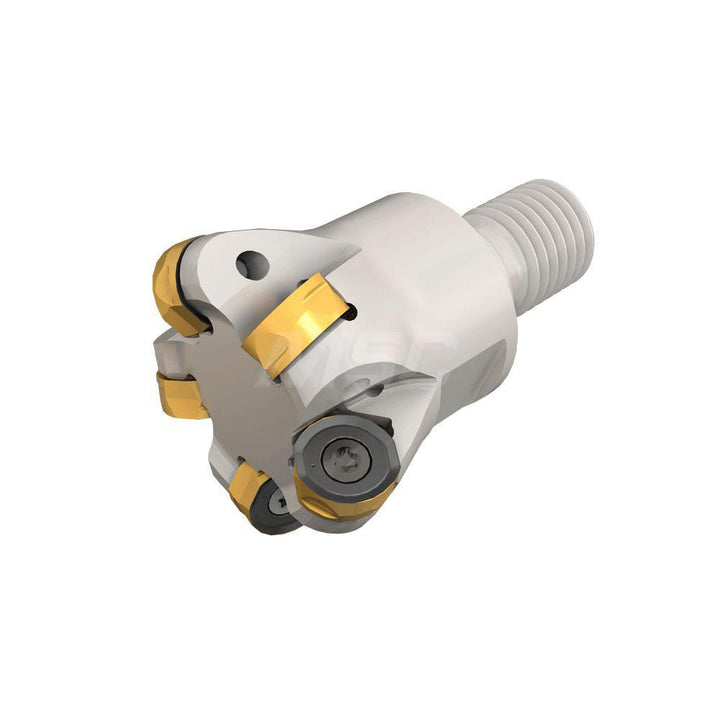

Indexable End Mills - Iscar 3106269
MFR# 3106269Series H400 ER-12
$642.05List $663.00
Save 3%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes5
Description
The Iscar 3106269 indexable end mills. Series H400 ER-12.
Specifications
Compatible insert styleH400 RNHU 1205
Coolant throughYes
Cutting diameter1.5748
Functional length1.3780
Insert holding methodScrew
Maximum cutting diameter1.5750
Maximum depth of cut0.3425
Maximum ramping angle3.7
Minimum cutting diameter (mm)28.00
Modular connection sizeM16
Number of cutter inserts5
Number of flutes5
Overall length1.3780
Shank length0.9840
Shank typeModular Connection
StandardsISO 13399
Toolholder materialSolid Carbide
Toolholder styleER-12; ER-M; H400; H400 ER-10; H400 ER-12; H400 ER-M
Tool applicationMilling
