Iscar

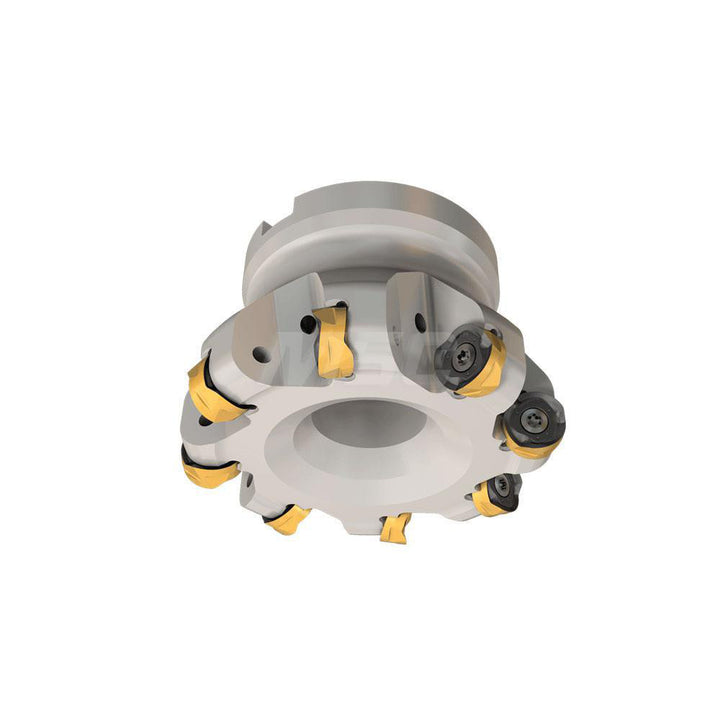

2" Indexable Milling Cutters - Iscar 3106380
MFR# 3106380Series Helido
$714.69List $738.00
Save 3%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Iscar 3106380 indexable milling cutters. Series Helido.
Specifications
Arbor hole diameter0.7500
Compatible insert size codeH606 RXCU 1206-AX
Complete insert compatibilityH606 RXCU 1206-AXMP; H606 RXCU 1206-AXT
Coolant throughYes
Counterbore diameter0.6300
Cutter styleH606 FR-12
Cutting diameter in2
Cutting directionRight Hand
Hub diameter1.7720
Insert holding methodScrew
Keyway width0.3120
Maximum cutting diameter2.0000
Maximum depth of cut0.2360
Maximum ramping angle1.30degree
Minimum cutting diameter1.5280
Number of cutter inserts6
Overall height2.0000
StandardsISO
