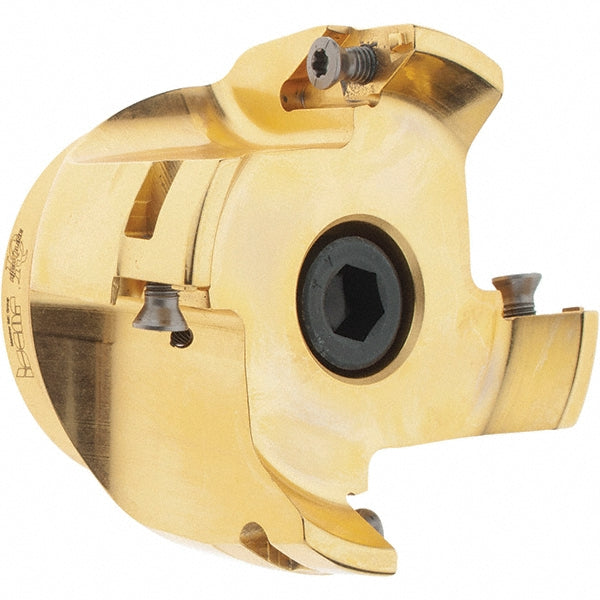

Indexable Milling Cutters - Iscar 3106431

MFR# 3106431Series Helialu

$1,045.88List $1,080.00 Save 3%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes4

Description

The Iscar 3106431 indexable milling cutters. Series Helialu.

Specifications

Arbor hole diameter1.0000
Compatible insert size codeHSM90S APCR 1405
Complete insert compatibilityHSM90S APCR 140508R-P; HSM90S APCR 140516R-P; HSM90S APCR 140520R-P; HSM90S APCR 140530R-P; HSM90S APCR 140532R-P; HSM90S APCR 140540R-P; HSM90S APCR 140550R-P
Coolant throughYes
Counterbore diameter0.7800
Cutter styleHSM90S FAL
Cutting directionRight Hand
Hub diameter2.1650
Insert holding methodClamp; Screw
Keyway depth0.2190
Keyway width0.3750
Lead angle90
Maximum cutting diameter in3
Maximum depth of cut0.3940
Maximum ramping angle7.50
Number of cutter inserts4
Number of flutes4
Overall height2.2500
StandardsISO
