Iscar

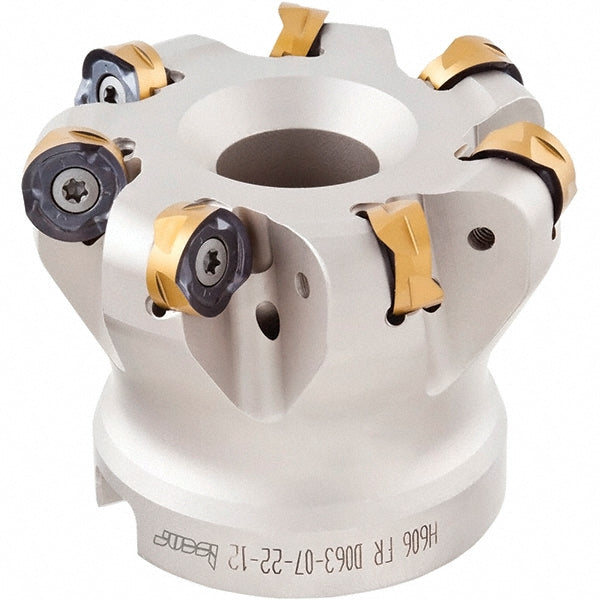

2-1/2" Indexable Milling Cutters - Iscar 3106610
MFR# 3106610Series Helido
$886.09List $915.00
Save 3%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Iscar 3106610 indexable milling cutters. Series Helido.
Specifications
Arbor hole diameter1.0000
Compatible insert size codeH606 RXCU 43-AX
Complete insert compatibilityH606 RXCU 43-AXMP; H606 RXCU 43-AXT
Coolant throughNo
Counterbore diameter0.7800
Cutter styleH606 FR-.50
Cutting diameter in2-1/2
Cutting directionRight Hand
Hub diameter2.1650
Insert holding methodScrew
Keyway width0.3750
Maximum cutting diameter2.5000
Maximum depth of cut0.2500
Maximum ramping angle1.00degree
Minimum cutting diameter2.0000
Number of cutter inserts7
Overall height2.0000
StandardsISO
