Iscar

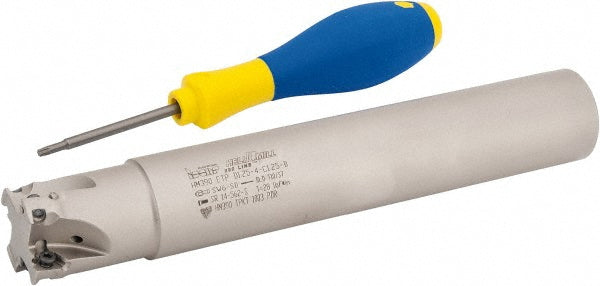

Indexable End Mills - Iscar 3106630
MFR# 3106630Cat# HM390 ETP D1.25-4-C1.25-BSeries HeliIQMill
$551.02List $569.00
Save 3%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes4
Description
The Iscar 3106630 indexable end mills. Series HeliIQMill.
Specifications
Coolant throughYes
Cutter styleHM390 ETP-10
End mill typeHelical
Flute typeHelical
Head length1.5700
Insert compatibilityHM390 TPKT 1003
Insert holding methodScrew
Iso 140012004; ISO 50001
Iso 90012008
Lead angle90
Manufacturers catalog numberHM390 ETP D1.25-4-C1.25-B
Maximum depth of cut0.3150
Maximum ramping angle2.1
Number of cutter inserts4
Number of flutes4
Oshas180012007
Shank diameter in1-1/4
Shank length6.3000
Shank typeCylindrical
StandardsAS 9100
Tool applicationMilling
Tool materialSolid Carbide
