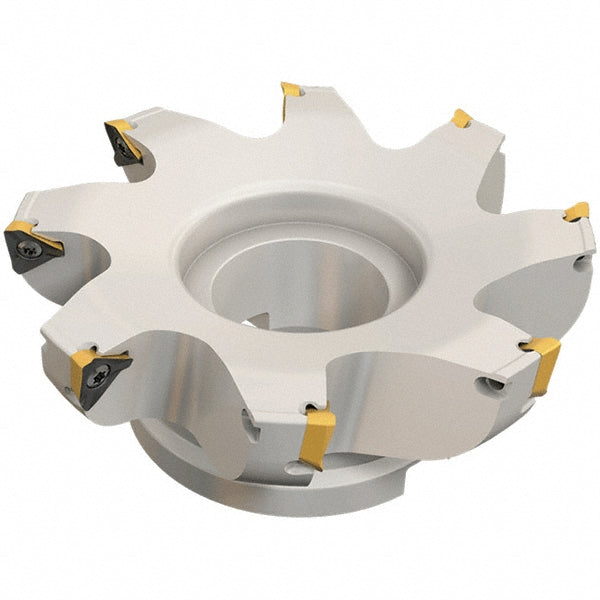

Indexable Milling Cutters - Iscar 3106781
MFR# 3106781Series HeliIQMill
$1,617.24List $1,670.00
Save 3%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes8
Description
The Iscar 3106781 indexable milling cutters. Series HeliIQMill.
Specifications
Arbor hole diameter2.0000
Compatible insert size codeHM390 TDKT 1505
Complete insert compatibilityHM390 TDKT 150516-PDR; HM390 TDKT 150524PDR; HM390 TDKT 150532PDR; HM390 TDKT 1505PDR
Coolant throughNo
Cutter styleHM390 FTD-15
Cutting directionRight Hand
Hub diameter4.1339
Insert holding methodScrew
Lead angle0
Maximum cutting diameter6.2992
Maximum depth of cut0.5118
Maximum ramping angle0.30
Number of cutter inserts8
Number of flutes8
Overall height2.4803
StandardsISO
