Iscar

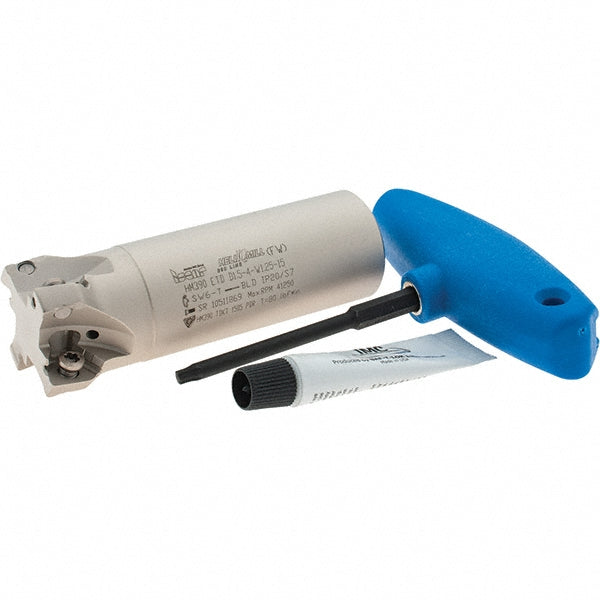

Indexable End Mills - Iscar 3106802
MFR# 3106802Series HeliIQMill
$524.31List $556.00
Save 5%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Iscar 3106802 indexable end mills. Series HeliIQMill.
Specifications
Coolant throughYes
Cutter styleHM390 ETD-15
Cutting diameter1-1/2
Flute typeHelical
Head length1.18
Insert compatibilityHM390 TDKT 1505..
Insert holding methodScrew
Iso 140012004; ISO 50001
Iso 90012008
Lead angle0
Maximum depth of cut0.5120
Maximum ramping angle2.1
Number of cutter inserts4
Oshas180012007
Overall length in4
Shank diameter in1-1/4
Shank length2.8200
Shank typeWeldon Flat
StandardsAS 9100
Tool applicationMilling
