Iscar

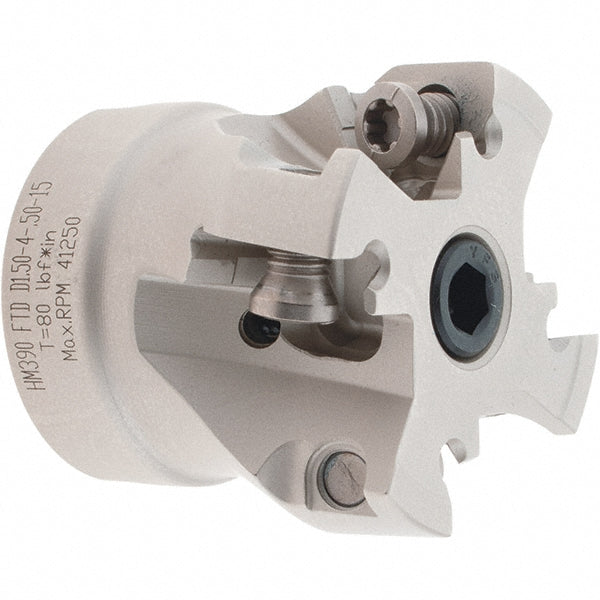

Indexable Milling Cutters - Iscar 3106803
MFR# 3106803Series HeliIQMill
$566.51List $585.00
Save 3%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes4
Description
The Iscar 3106803 indexable milling cutters. Series HeliIQMill.
Specifications
Arbor hole diameter0.5000
Compatible insert size codeHM390 TDKT 1505
Complete insert compatibilityHM390 TDKT 150516-PDR; HM390 TDKT 150524PDR; HM390 TDKT 150532PDR; HM390 TDKT 1505PDR
Coolant throughYes
Cutter styleHM390 FTD-15
Cutting directionRight Hand
Hub diameter1.2000
Insert holding methodClamp; Screw
Lead angle0
Maximum cutting diameter in1-1/2
Maximum depth of cut0.5120
Maximum ramping angle2.00
Number of cutter inserts4
Number of flutes4
Overall height1.3700
StandardsISO
