Iscar

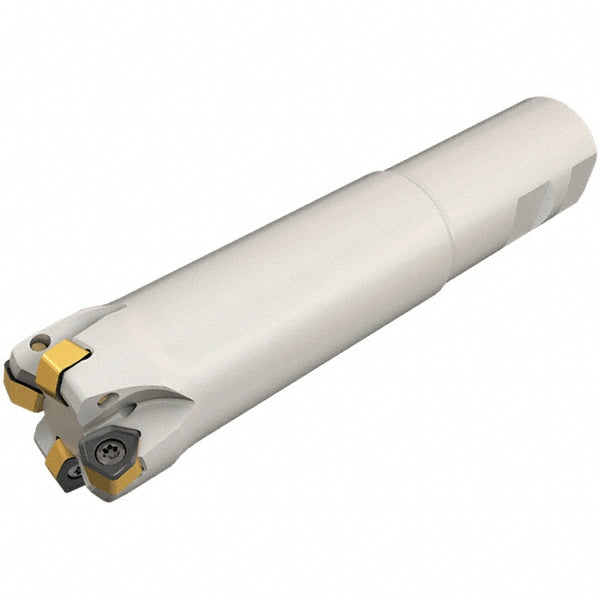

Indexable End Mills - Iscar 3106832
MFR# 3106832Cat# FF EWXD1.25-3-2.5W1.25-07Series High Feed 6
$475.49List $491.00
Save 3%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Description
The Iscar 3106832 indexable end mills. Series High Feed 6.
Specifications
Compatible insert styleH600WXCU070515T
Coolant throughYes
Cutting diameter1.2500
Head length2.6200
Insert holding methodScrew
Manufacturers catalog numberFF EWXD1.25-3-2.5W1.25-07
Maximum cutting diameter in1-1/4
Maximum depth of cut0.0590
Maximum ramping angle6.30
Minimum cutting diameter0.7400
Number of cutter inserts3
Number of flutes3
Overall length4.9500
Projection2.5000
Shank diameter in1-1/4
Shank typeWeldon Flat
StandardsISO 13399
Toolholder styleFF EWX-07
Tool applicationMilling
Weldon flatYes
