Indexable Milling Cutters - Iscar 3106850

Iscar

Indexable Milling Cutters - Iscar 3106850

MFR# 3106850Cat# MF FWX D1.50-04-0.50-07Series Helido

$613.97List $634.00 Save 3%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes4

Description

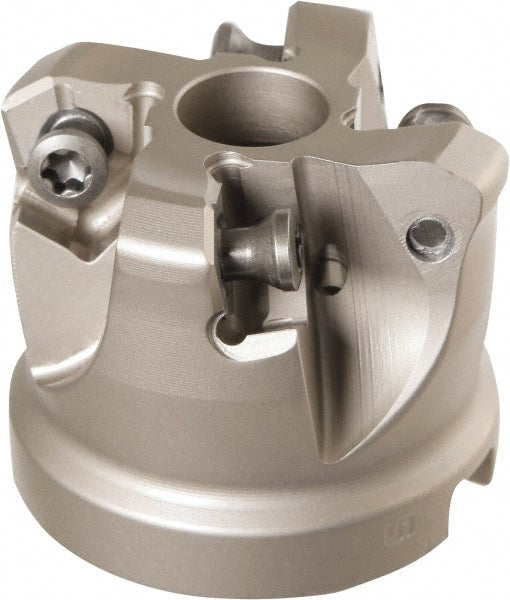

The Iscar 3106850 indexable milling cutters. Series Helido.

Specifications

Arbor hole diameter0.5000
Compatible insert size codeH600 WXCU
Complete insert compatibilityH600 WXCU 040310HP; H600 WXCU 040310T; H600 WXCU 05T312HP; H600 WXCU 05T312T; H600 WXCU 070515HP; H600 WXCU 070515T; H600 WXCU 080612HP; H600 WXCU 080612T; H600 WXCU 080616RM
Coolant throughYes
Cutter styleMF FWX-07
Cutting diameter1.5000
Cutting directionRight Hand
Insert compatibilityH600 WXCU
Insert holding methodScrew
Manufacturers catalog numberMF FWX D1.50-04-0.50-07
Maximum body diameter1.5000
Maximum cutting diameter1.5000
Maximum depth of cut0.1060
Maximum ramping angle2.20degree
Minimum cutting diameter1.0200
Number of cutter inserts4
Number of flutes4
Overall height1.2500
StandardsISO
