Iscar

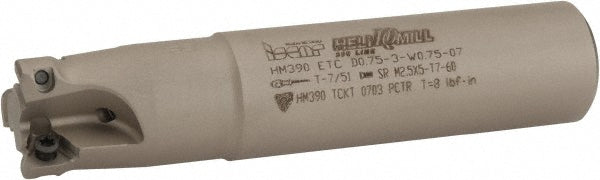

Indexable End Mills - Iscar 3106937
MFR# 3106937Cat# HM390 ETC D.0.75-3W0.75-07Series HeliIQMill
$396.08List $409.00
Save 3%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Iscar 3106937 indexable end mills. Series HeliIQMill.
Specifications
Coolant throughYes
Cutter styleHM390 ETC-07
End mill typeHelical
Flute typeHelical
Head length1.2500
Insert compatibilityHM390 TCKT 0703PCTR
Insert holding methodScrew
Iso 140012004; ISO 50001
Iso 90012008
Lead angle0
Manufacturers catalog numberHM390 ETC D.0.75-3W0.75-07
Maximum depth of cut0.2000
Maximum ramping angle1.5
Number of cutter inserts3
Oshas180012007
Shank diameter in3/4
Shank length2.2500
Shank typeWeldon Flat
StandardsAS 9100
Tool applicationMilling
