Iscar

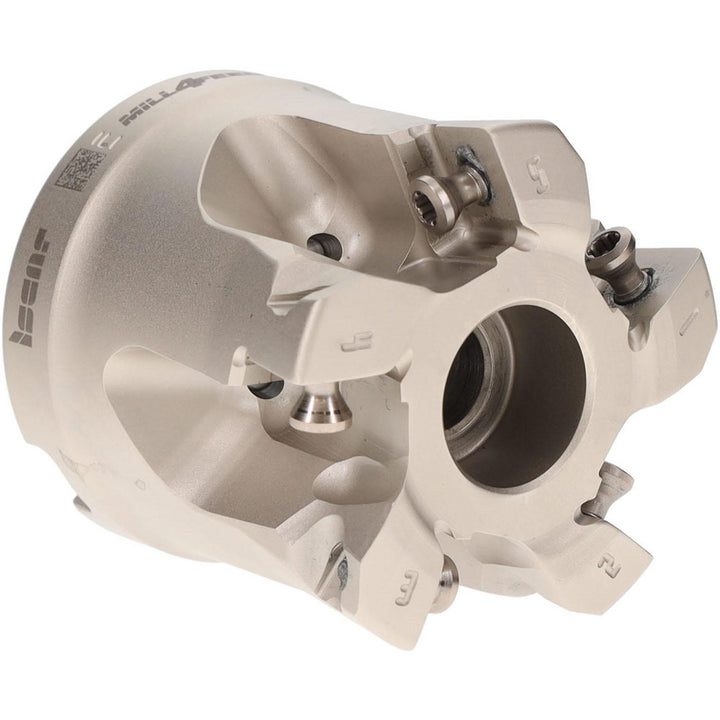

Indexable Milling Cutters - Iscar 3107341
MFR# 3107341Series FFQ4
$711.78List $735.00
Save 3%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes5
Description
The Iscar 3107341 indexable milling cutters. Series FFQ4.
Specifications
Arbor hole diameter0.7500
Compatible insert size codeSOMT; SOMW
Coolant throughYes
Cutter styleFFQ4
Cutting diameter1.136
Insert compatibilityFFQ4
Insert holding methodScrew
Maximum body diameter1.8500
Maximum cutting diameter2.0000
Maximum depth of cut0.0590
Maximum ramping angle2.60degree
Minimum cutting diameter1.1360
Number of cutter inserts5
Number of flutes5
Overall height2.0000
StandardsISO
