Iscar

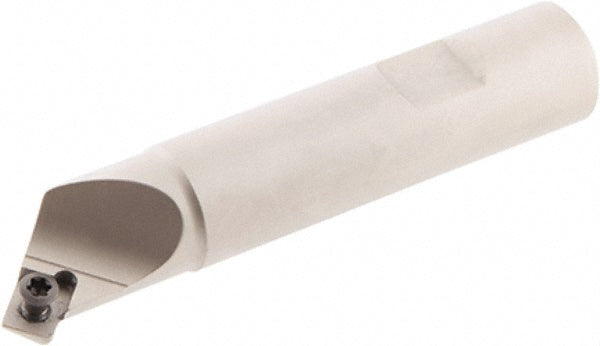

Indexable End Mills - Iscar 3110003
MFR# 3110003Cat# E45 D .50-W.75Series IscarMill
$256.62List $265.00
Save 3%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes1
Description
The Iscar 3110003 indexable end mills. Series IscarMill.
Specifications
Compatible insert size codeSDMT-AD-N
Coolant throughNo
Functional length1.1800
Head length1.1800
Included angle degree45
Insert holding methodScrew Clamping
Insert styleSDMT-AD-N
Manufacturers catalog numberE45 D .50-W.75
Maximum body diameter0.7500
Maximum cutting diameter0.9100
Maximum depth of cut0.2200
Maximum rpm7000
Minimum cutting diameter0.4720
Number of cutter inserts1
Number of flutes1
Number of inserts included in order1
Overall length3.9400
Shank diameter in3/4
Shank length2.7600
Shank typeWeldon Flat
StandardsISO 13399
Toolholder styleE45
Tool applicationMilling
