Iscar

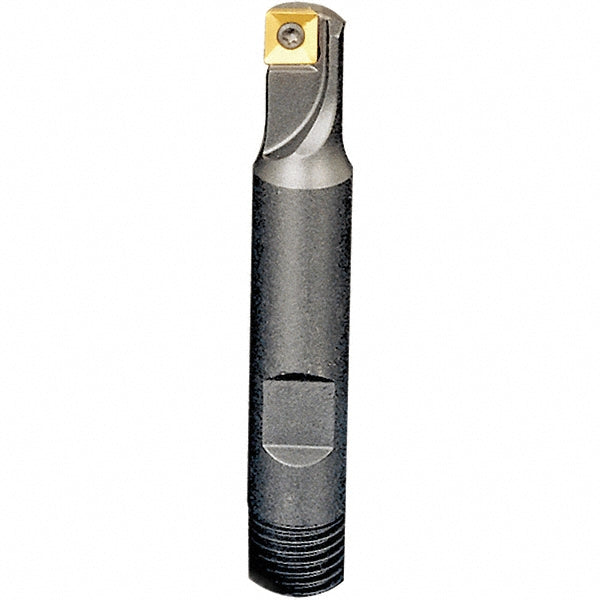

Indexable End Mills - Iscar 3110361
MFR# 3110361Cat# E90X D.75-W .75-06Series Heliquad
$396.08List $409.00
Save 3%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Description
The Iscar 3110361 indexable end mills. Series Heliquad.
Specifications
Coolant throughNo
Cutter styleE90X
Head length0.8700
Insert compatibilityQOMT 0602..; SOMT 0602..; XOMT 0602..
Insert holding methodScrew
Iso 140012004; ISO 50001
Iso 90012008
Lead angle90
Manufacturers catalog numberE90X D.75-W .75-06
Maximum depth of cut0.2200
Maximum ramping angle3
Number of cutter inserts3
Number of flutes3
Oshas180012007
Shank diameter in3/4
Shank length2.1300
Shank typeWeldon Flat
StandardsAS 9100
Tool applicationMilling
Usable length0.8700
