Iscar

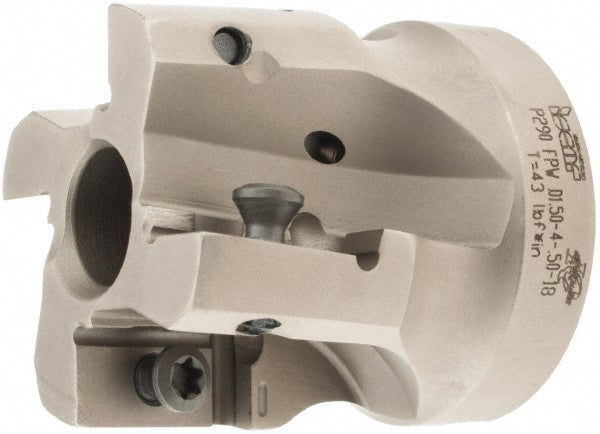

Indexable Milling Cutters - Iscar 3110785
MFR# 3110785Series MillShred
$584.92List $604.00
Save 3%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes4
Description
The Iscar 3110785 indexable milling cutters. Series MillShred.
Specifications
Arbor hole diameter0.5000
Compatible insert size codeP290 AC T1806
Complete insert compatibilityP290 ACCT 1806PDR-HL; P290 ACKT 1806PDR-FW; P290 ACKT 1806PDR-FWE; P290 ACKT 1806PDR-FWR
Coolant throughYes
Cutter styleP290 FPW
Cutting directionRight Hand
Hub diameter1.3800
Insert holding methodScrew
Lead angle0
Maximum cutting diameter in1-1/2
Maximum depth of cut0.7080
Maximum ramping angle1.50
Number of cutter inserts4
Number of flutes4
Overall height1.5700
StandardsISO
