Iscar

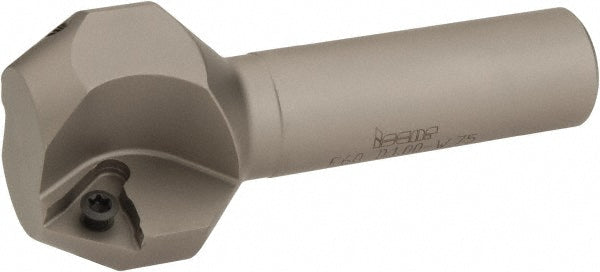

Indexable End Mills - Iscar 3181000
MFR# 3181000Cat# E60 D1.00-W .75Series IscarMill
$264.37List $273.00
Save 3%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Iscar 3181000 indexable end mills. Series IscarMill.
Specifications
Functional length1.4600
Head length1.4600
Insert holding methodScrew
Manufacturers catalog numberE60 D1.00-W .75
Maximum body diameter0.7500
Maximum cutting diameter1.5600
Maximum depth of cut0.4800
Minimum cutting diameter in1
Overall length3.5400
Shank diameter in3/4
Shank typeWeldon Flat
StandardsISO 13399
Toolholder styleE60
Tool applicationMilling
