Iscar

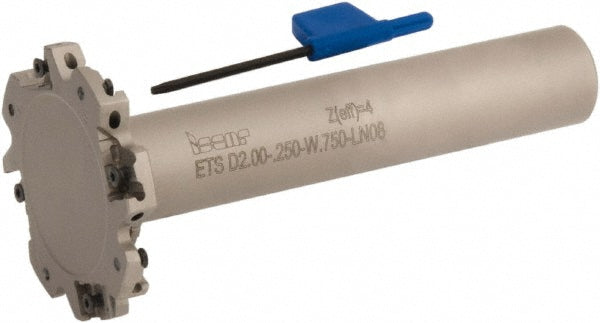

Indexable Milling Cutters - Iscar 3181011
MFR# 3181011Cat# ETS D2.00-.250-W.750-LN08Series Mini-TangSlot (ETS-LN08)
$913.21List $943.00
Save 3%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Iscar 3181011 indexable milling cutters. Series Mini-TangSlot (ETS-LN08).
Specifications
Compatible insert styleLNET
Complete insert compatibilityLNET 083504-TN-N; LNET 083704-TN-N
Connection typeShank
Cutter diameter2.0000
Cutting directionRight Hand
Cutting radius frac in1/64
Cutting width in1/4
Hole diameter in3/4
Insert holding methodScrew
Insert inscribed circle (mm)6.85
Manufacturers catalog numberETS D2.00-.250-W.750-LN08
Maximum cutting width0.2690
Maximum depth of cut0.6250
Minimum cutting width0.2500
Number of cutter inserts8
Number of teeth4
Overall height4.2500
Shank diameter in3/4
Shank length3.9810
Toolholder styleETS-LN08
Tool applicationMilling
Weldon flatYes
