Iscar

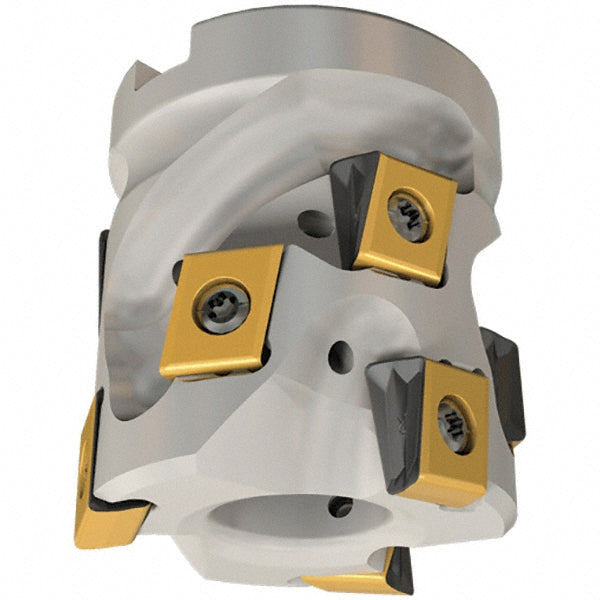

Indexable Milling Cutters - Iscar 3181022
MFR# 3181022Series Helitang
$702.10List $725.00
Save 3%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
Description
The Iscar 3181022 indexable milling cutters. Series Helitang.
Specifications
Arbor hole diameter0.7500
Compatible insert size codeT490 LN 1306
Complete insert compatibilityT490 LNAR 1306; T490 LNMT/LNHT 1306
Coolant throughYes
Cutter styleT490 SM-13
Cutting edge length1.4300
Hub diameter1.4000
Insert holding methodClamp; Screw
Lead angle0/90
Maximum cutting diameter in1-1/2
Maximum depth of cut1.4300
Maximum insert radius0.2500
Minimum insert radius0.0310
Number of cutter inserts6
Number of flutes2
Overall height2.4400
StandardsISO
