Iscar

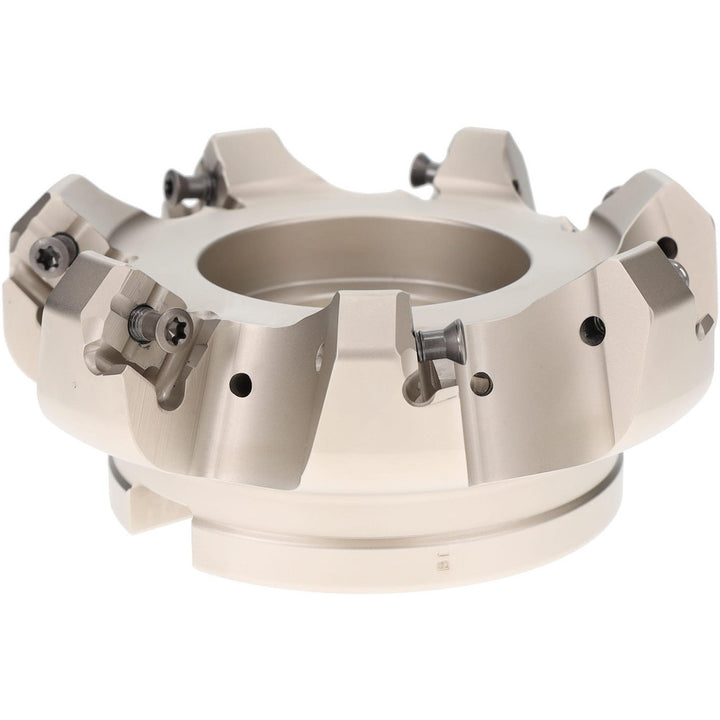

Indexable Milling Cutters - Iscar 3181094
MFR# 3181094Cat# S845 F45SX D4.0-7-1.5-R16Series Helido
$1,162.09List $1,200.00
Save 3%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes7
Description
The Iscar 3181094 indexable milling cutters. Series Helido.
Specifications
Arbor hole diameter in1-1/2
Compatible insert size code16
Complete insert compatibilityS845 SXCU 160608AD-RMM; S845 SXHU 1606AD-R-W; S845 SXMU 1606ADTR-MM; S845 SXMU 1606ADTR-RM
Coolant throughYes
Cutter styleS845 F45SX-16
Cutting directionRight Hand
Hub diameter3.2680
Insert holding methodScrew
Keyway width0.6250
Manufacturers catalog numberS845 F45SX D4.0-7-1.5-R16
Maximum body diameter4.5800
Maximum cutting diameter4.5800
Maximum depth of cut0.2760
Maximum insert radius0.0310
Maximum rpm4000
Minimum cutting diameter in4
Number of cutter inserts7
Number of flutes7
Overall height2.0000
StandardsISO
Tool applicationChamfering
