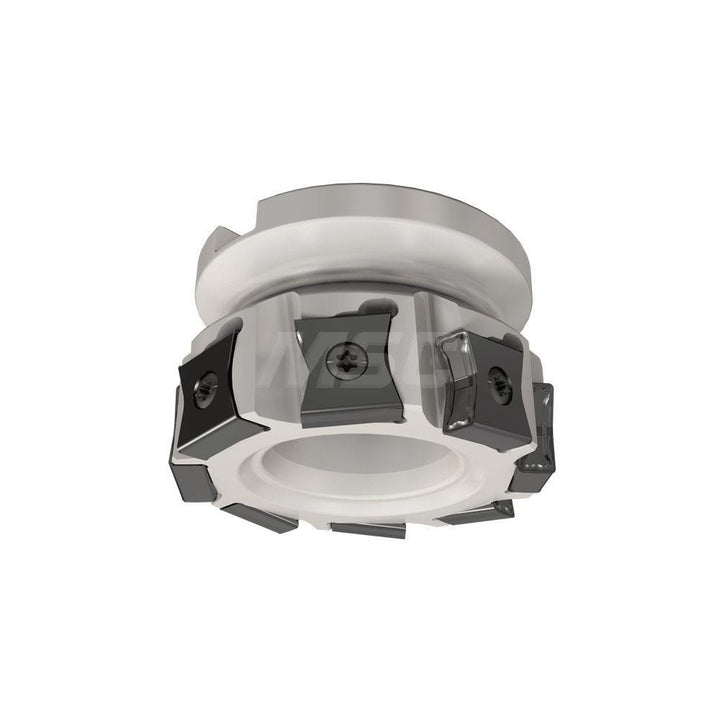

Indexable Milling Cutters - Iscar 3197232

Iscar

Indexable Milling Cutters - Iscar 3197232

MFR# 3197232Cat# F90LN D2.00-05-.75-R-N15Series TangMill

$759.24List $784.00 Save 3%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes5

Description

The Iscar 3197232 indexable milling cutters. Series TangMill.

Specifications

Arbor hole diameter0.7500
Compatible insert size codeLN 1506
Complete insert compatibilityLNAR 1506; LNAR 1506 PN-R-S (PCD); LNAT 1506-W; LNAT 1506..PN-N MM; LNAW-15 (CBN); LNHW 1506 PNTN (Ceramic); LNKX 1506 1.5X45 PN-N; LNKX 1506PN-N PL; LNKX/LNMT 1506PNTN/PN-N MM; LNMT 1506PN-R-TS; LNMT/LNHT 1506...-N HT; LNMT/LNHT 1506PN-R HT; LNMW 1506 PN
Coolant throughNo
Cutter styleF90LN-N15
Cutting directionRight Hand
Cutting edge length0.5510
Hub diameter1.8500
Insert holding methodClamp; Screw
Lead angle0/90
Manufacturers catalog numberF90LN D2.00-05-.75-R-N15
Maximum cutting diameter in2
Maximum depth of cut0.5510
Maximum insert radius0.0630
Minimum insert radius0.0310
Number of cutter inserts5
Number of flutes5
Overall height1.5700
StandardsISO
