Iscar

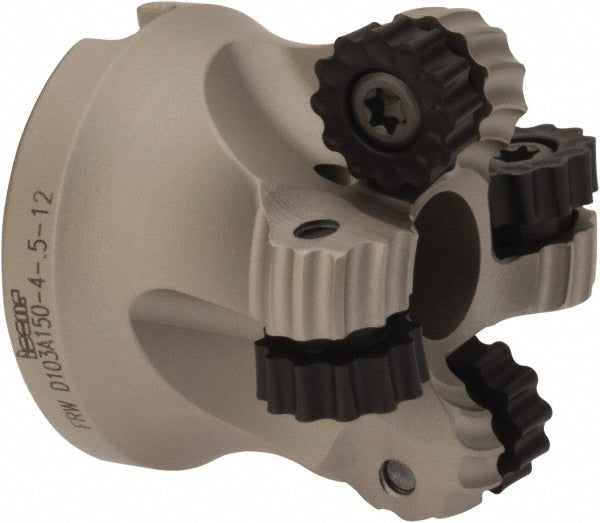

Indexable Milling Cutters - Iscar 3197235
MFR# 3197235Series MillShred
$637.22List $658.00
Save 3%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Iscar 3197235 indexable milling cutters. Series MillShred.
Specifications
Arbor hole diameter0.5000
Compatible insert size codeRC 1206
Complete insert compatibilityRCMT/RCCT-MO; RCMT/RCMW/RCCW-FW; RCMW/RCCW-MO
Coolant throughYes
Cutter styleFRW
Cutting diameter1.0300
Hub diameter1.3780
Insert holding methodScrew
Insert inscribed circle0.4720
Maximum cutting diameter1.5000
Maximum depth of cut0.2360
Maximum ramping angle6.50degree
Minimum cutting diameter1.0300
Number of cutter inserts4
Overall height1.2500
StandardsISO
