Iscar

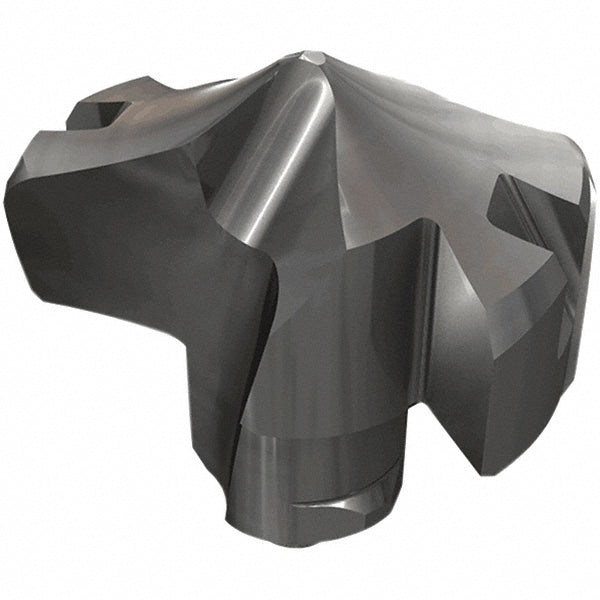

Carbide Insert, Grade IC908, TiAlN - Iscar 3302269
MFR# 3302269Series HCP-IQ
$190.52List $244.00
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
GradeIC908
CoatingTiAlN
Description
The Iscar 3302269 is a carbide indexable insert, grade IC908, TiAlN coated. Suited for steel, cast iron.
Specifications
ApplicationsHole Making; Chamfering; Gundrills; Drilling
Coating finishTiAlN
Coating processPVD
Coolant throughNo
Cutting diameter in1-1/32
Drill point angle136
Flute length (mm)9.00
Flute typeHelical
Functional length0.3593
Height in19/32
Included angle degree136
Insert geometryP
Insert holding methodClamp
Insert seat size26
Iso numberHCP 262-IQ
Manufacturer gradeIC908
Material gradeSubmicron
Number of flutes2
Overall length projection0.5937
Point typeSelf Centering
Primary workpiece materialSteel; Cast Iron
Secondary workpiece materialStainless Steel; Superalloys & Titanium; Hard Material
Spiral typeRegular Spiral
StandardsISO 13399
StyleHCP-IQ
Tip materialSolid Carbide
Web thinningWeb Thinned
