Iscar

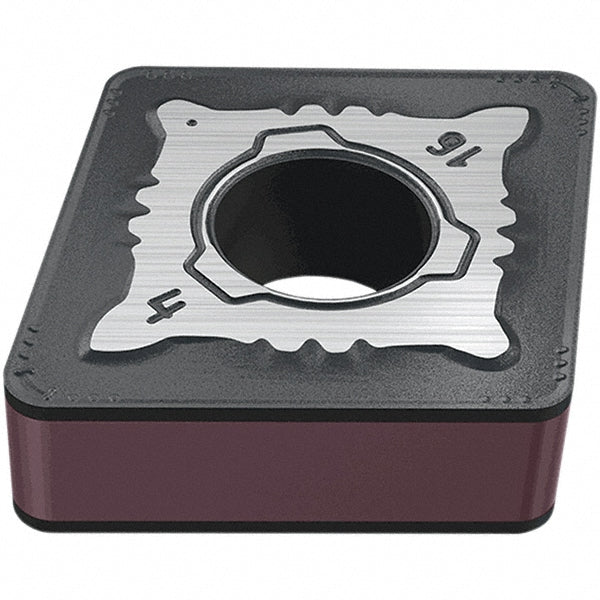

CNMG 643-R3M Carbide Insert, Grade IC806, AlTiN - Iscar 3302687
MFR# 3302687ISO/ANSI# CNMG 643-R3MSeries Isoturn
$37.03List $47.50
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/4
ShapeDiamond
GradeIC806
MaterialCarbide
CoatingAlTiN
Description
The Iscar 3302687 is a CNMG 643-R3M carbide indexable insert, grade IC806, AlTiN coated.
Specifications
Chip breakerR3M
Clearance codeN
Coating finishAlTiN
Coating processPVD
Corner radius0.0470
Included angle80
Inscribed circle in3/4
Insert handRight Hand
Insert length0.7610
Insert materialCarbide
Insert shapeDiamond
Insert size code643
Insert styleCNMG
Insert thickness in1/4
Iso codeCNMG 643-R3M
Length range0.7000 - 10.0000
Manufacturers catalog number3302687
Manufacturer gradeIC806
Maximum depth of cut0.3540
RakePositive
StandardsISO 13399
Tolerance codeM
