Iscar

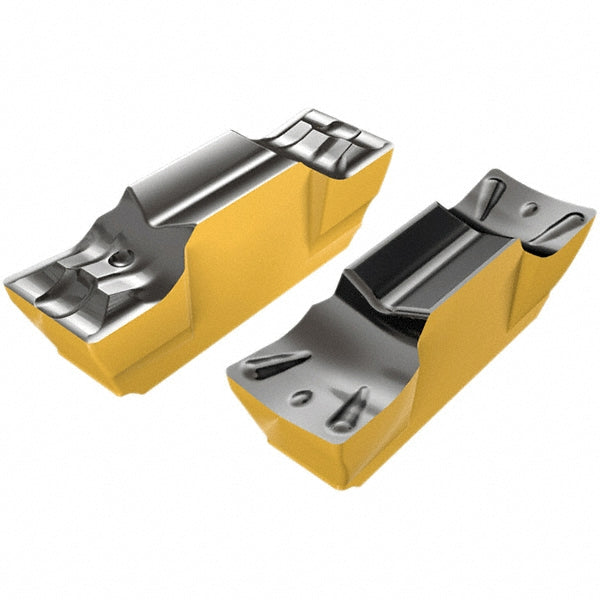

GEMI 2002N IC808 Solid Carbide Insert, Grade IC808, AlTiN - Iscar 3302934
MFR# 3302934ISO/ANSI# GEMI 2002N IC808Series Cut Grip
$26.62List $34.10
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC808
MaterialSolid Carbide
CoatingAlTiN
Description
The Iscar 3302934 is a GEMI 2002N IC808 solid carbide indexable insert, grade IC808, AlTiN coated. Suited for universal.
Specifications
Chip breakerN
Coating finishAlTiN
Coating processPVD
Corner radius0.0080
Cutting width0.0790
Insert materialSolid Carbide
Insert size2002
Insert size code2002N
Insert styleGEMI
Iso codeGEMI 2002N IC808
Manufacturers catalog number3302934
Manufacturer gradeIC808
Material gradeFine-Grained
Maximum corner radius0.0080
Maximum depth of cut0.0310
Maximum depth of cut range0.0000 to 0.0750
Multi use toolYes
Overall width0.0630
Primary workpiece materialUniversal
RakePositive
Rake angle8.00
StandardsISO 13399
