Iscar

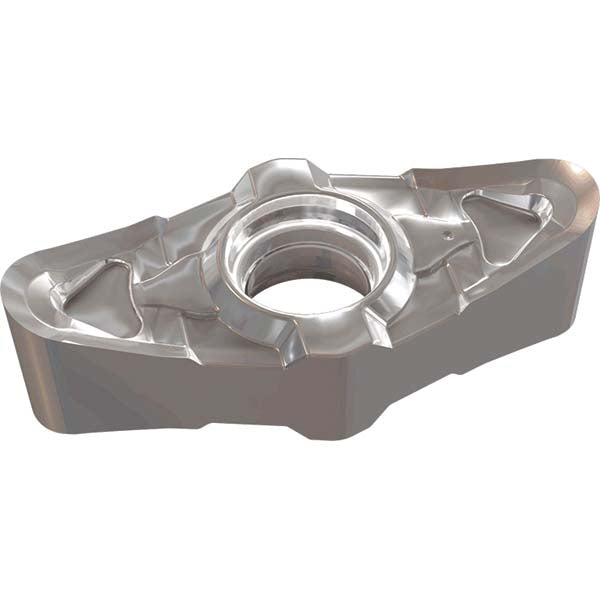

ISO 13399 Solid Carbide Insert, Grade IC20 - Iscar 3303939
MFR# 3303939ISO/ANSI# ISO 13399Series Isoturn
$43.20List $55.40
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeDiamond
GradeIC20
MaterialSolid Carbide
Description
The Iscar 3303939 is a ISO 13399 solid carbide indexable insert, grade IC20. Suited for universal.
Specifications
Chip breakerRN3
Clearance codeN
Coating processUncoated
Corner radius0.1180
Included angle35.0
Inscribed circle0.5000
Insert length0.8660
Insert materialSolid Carbide
Insert shapeDiamond
Insert size code220630
Insert styleVNGU
Insert thickness in1/4
Iso codeISO 13399
Length range0.7000 - 10.0000
Manufacturer gradeIC20
Maximum depth of cut0.1770
Primary workpiece materialUniversal
RakePositive
StandardsISO 13399
Tolerance codeG
