Iscar

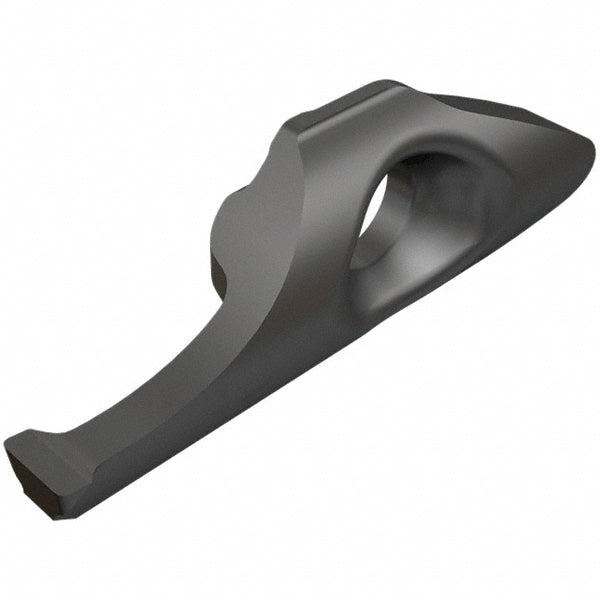

MIFR 10-2.00-0.20 IC908 Solid Carbide Insert, Grade IC908, TiAlN - Iscar 3304243
MFR# 3304243ISO/ANSI# MIFR 10-2.00-0.20 IC908Series Min-Cut
$45.60List $58.40
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC908
MaterialSolid Carbide
CoatingTiAlN
Description
The Iscar 3304243 is a MIFR 10-2.00-0.20 IC908 solid carbide indexable insert, grade IC908, TiAlN coated. Suited for universal.
Specifications
Coating finishTiAlN
Coating processPVD
Corner radius0.0079
Cutting width0.0790
Insert handRight Hand
Insert holding methodClamp; Screw
Insert materialSolid Carbide
Insert size10-2.00-0.20
Insert size code10200020
Insert styleMIFR
Insert thickness0.2990
Iso codeMIFR 10-2.00-0.20 IC908
Manufacturers catalog number3304243
Manufacturer gradeIC908
Material gradeFine-Grained
Maximum corner radius0.0079
Maximum depth of cut0.3540
Maximum depth of cut range0.3000 to 1.0000
Multi use toolYes
Overall length0.9880
Overall width0.1180
Primary workpiece materialUniversal
StandardsISO 13399
