Iscar

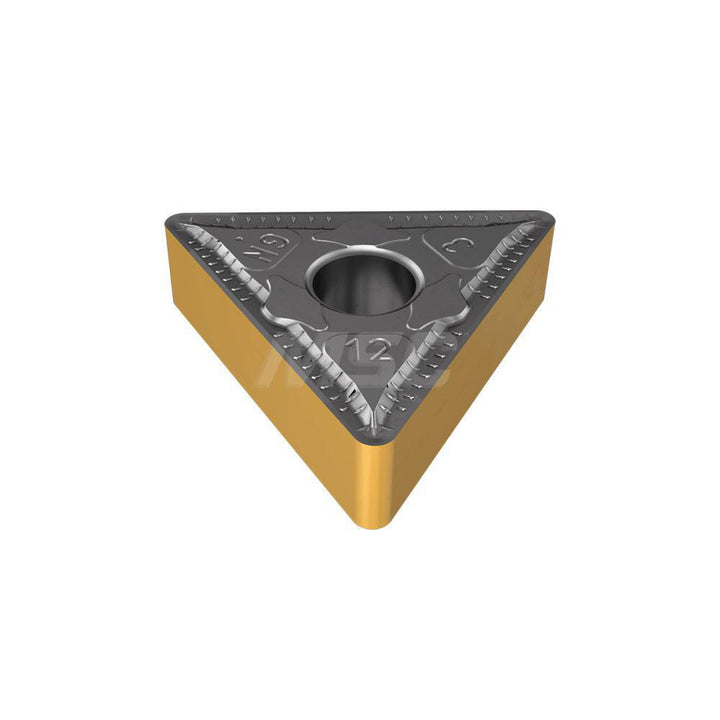

TNMG 543-GN Solid Carbide Insert, Grade IC830, TiAlN - Iscar 3308108
MFR# 3308108ISO/ANSI# TNMG 543-GNSeries Isoturn
$37.19List $47.70
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeTriangle
GradeIC830
MaterialSolid Carbide
CoatingTiAlN
Description
The Iscar 3308108 is a TNMG 543-GN solid carbide indexable insert, grade IC830, TiAlN coated. Suited for m, p, s.
Specifications
Chip breakerGN
Clearance codeN
Coating finishTiAlN
Coating processPVD
Corner radius0.0470
Included angle60.0
Inscribed circle0.6250
Insert handRight Hand
Insert length1.0830
Insert materialSolid Carbide
Insert shapeTriangle
Insert size code543
Insert styleTNMG
Insert thickness0.2500
Iso codeTNMG 543-GN
Length range0.7000 - 10.0000
Manufacturers catalog number3308108
Manufacturer gradeIC830
Maximum depth of cut0.2360
Multi use applicationTurning
Primary workpiece materialM; P; S
Secondary workpiece materialNone
StandardsISO 13399
Tolerance codeM
