Iscar

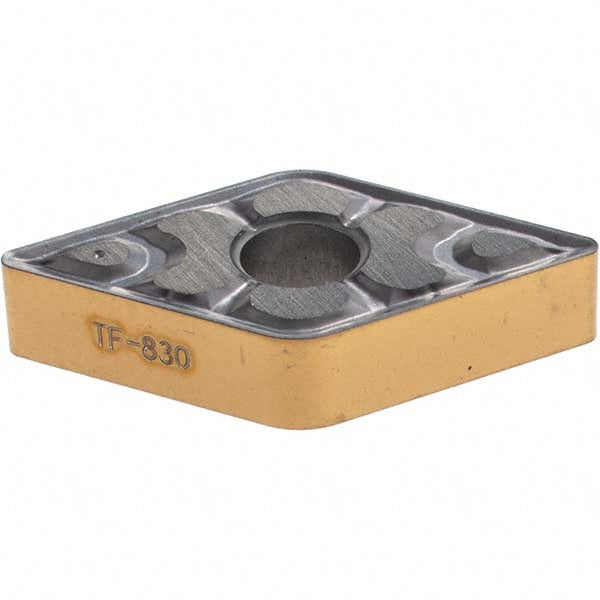

DNMG 432-TF Solid Carbide Insert, Grade IC830, TiAlN - Iscar 3308113
MFR# 3308113ISO/ANSI# DNMG 432-TFSeries Isoturn
$22.29List $28.60
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeDiamond
GradeIC830
MaterialSolid Carbide
CoatingTiAlN
Description
The Iscar 3308113 is a DNMG 432-TF solid carbide indexable insert, grade IC830, TiAlN coated. Suited for m, p, s.
Specifications
Chip breakerTF
Clearance codeN
Coating finishTiAlN
Coating processPVD
Corner radius0.0310
Included angle55.0
Inscribed circle0.5000
Insert handRight Hand
Insert length0.6100
Insert materialSolid Carbide
Insert shapeDiamond
Insert size code432
Insert styleDNMG
Insert thickness0.1870
Iso codeDNMG 432-TF
Length range0.6000 - 0.6500
Manufacturers catalog number3308113
Manufacturer gradeIC830
Maximum depth of cut0.1380
Multi use applicationTurning
Primary workpiece materialM; P; S
RakePositive
Secondary workpiece materialNone
StandardsISO 13399
Tolerance codeM
