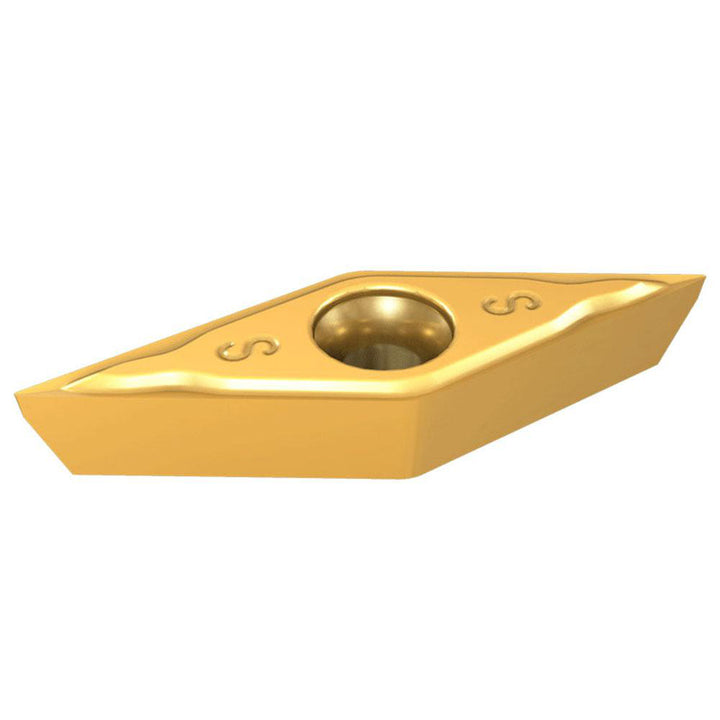

VCGT 130302-PF Carbide Insert, Grade IC830, TiAlN - Iscar 3308114

Iscar

VCGT 130302-PF Carbide Insert, Grade IC830, TiAlN - Iscar 3308114

MFR# 3308114ISO/ANSI# VCGT130302Series Isoturn

$25.73List $33.00 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeV - Diamond (Rhombic) 35-Deg
GradeIC830
MaterialCarbide
CoatingTiAlN

Description

The Iscar 3308114 is a VCGT 130302-PF carbide indexable insert, grade IC830, TiAlN coated.

Specifications

Ansi insert codeVCGT130302
Ansi size code130302
Chip breakerPF
Chip breaker operationFinishing
Clearance codeC
Coating finishTiAlN
Coating processPVD
Corner radius0.0080
Grade characteristicsSteel (P) - Moderate Wear-Resistance and Toughness to High Toughness; Stainless Steel (M) - Moderate Wear-Resistance and Toughness to High Toughness; Special, Super Alloys (S) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Hardened Mate
Hole diameter0.1340
Included angle35
Inscribed circle0.3130
Insert handRight Hand
Insert length0.5120
Insert materialCarbide
Insert shapeV - Diamond (Rhombic) 35-Deg
Insert size code130302
Insert styleVCGT
Insert thickness in1/8
Iso codeVCGT 130302-PF
Iso insert codeVCGT130302
Iso size code130302
Length range0.5000 - 0.6000
Manufacturers catalog number3308114
Manufacturer gradeIC830
Maximum depth of cut0.0980
Multi use applicationTurning
RakePositive
Relief angle7
Side clearancePositive
StandardsISO 13399
Tolerance codeG
