Iscar

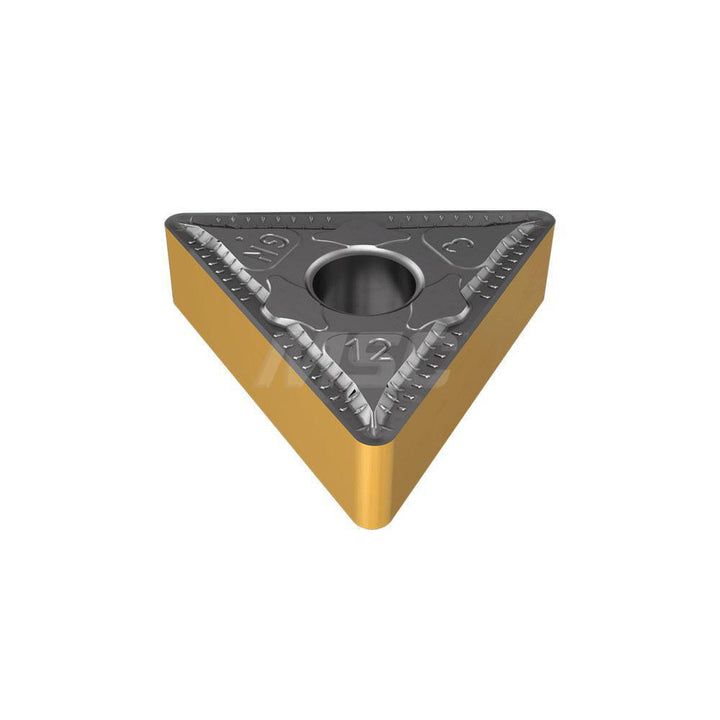

TNMG 433-GN Solid Carbide Insert, Grade IC830, TiAlN - Iscar 3308116
MFR# 3308116ISO/ANSI# TNMG 433-GNSeries Isoturn
$19.26List $24.70
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeTriangle
GradeIC830
MaterialSolid Carbide
CoatingTiAlN
Description
The Iscar 3308116 is a TNMG 433-GN solid carbide indexable insert, grade IC830, TiAlN coated. Suited for m, p, s.
Specifications
Chip breakerGN
Clearance codeN
Coating finishTiAlN
Coating processPVD
Corner radius0.0470
Included angle60.0
Inscribed circle0.5000
Insert handRight Hand
Insert length0.8660
Insert materialSolid Carbide
Insert shapeTriangle
Insert size code433
Insert styleTNMG
Insert thickness0.1870
Iso codeTNMG 433-GN
Length range0.7000 - 10.0000
Manufacturers catalog number3308116
Manufacturer gradeIC830
Maximum depth of cut0.1770
Multi use applicationTurning
Primary workpiece materialM; P; S
Secondary workpiece materialNone
StandardsISO 13399
Tolerance codeM
