Iscar

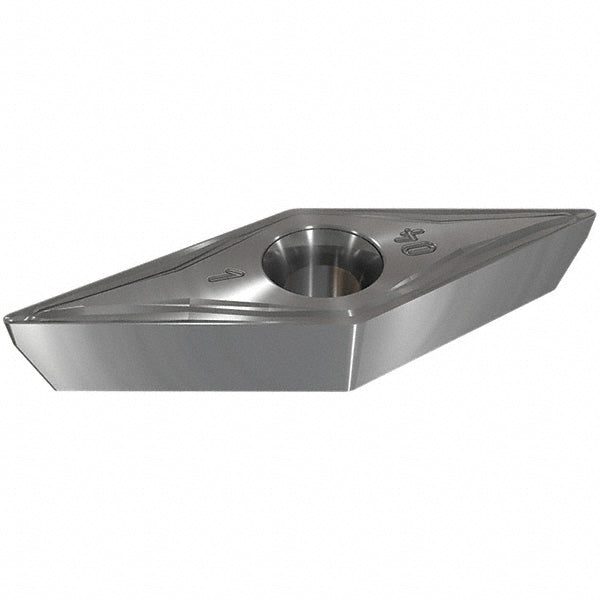

VCMT 332-14 Solid Carbide Insert, Grade IC830, TiAlN - Iscar 3308126
MFR# 3308126ISO/ANSI# VCMT 332-14Series Isoturn
$21.67List $27.80
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeDiamond
GradeIC830
MaterialSolid Carbide
CoatingTiAlN
Description
The Iscar 3308126 is a VCMT 332-14 solid carbide indexable insert, grade IC830, TiAlN coated. Suited for m, p, s.
Specifications
Chip breaker14
Clearance codeC
Coating finishTiAlN
Coating processPVD
Corner radius0.0310
Hole diameter0.1730
Included angle35.0
Inscribed circle0.3750
Insert handRight Hand
Insert length0.6540
Insert materialSolid Carbide
Insert shapeDiamond
Insert size code332
Insert styleVCMT
Insert thickness0.1870
Iso codeVCMT 332-14
Length range0.6500 - 0.7000
Manufacturers catalog number3308126
Manufacturer gradeIC830
Maximum depth of cut0.1970
Multi use applicationTurning
Primary workpiece materialM; P; S
RakePositive
Relief angle7
Secondary workpiece materialNone
StandardsISO 13399
Tolerance codeM
